Hastelloy Accessen Heat Exchanger Plate

Changzhou Victory Technology Co., LTD
Contact Now

Hastelloy Accessen Heat Exchanger Plate

Brand Name : Accessen

Model Number : AU3、AU5、AS6、AU8、AU10L1、AU10L2、AU15L1、AU15L2、AU15M、AU20、AU20M AN5、AN10L1、AN10L2、AN10M、AN15L1、AN15L2、AU25L1、AU25L3 AN20、AN25L1、AN25L2、AN30L1、AN30L2、AN30L3、AN30L4 AN35L1、AN35L2、AN35L3、AN35L4、AN40L1、AN40L2、AN40L3、AN40L4 AN45L1、AN45L2、AN45L3、AN45L4、AS20、AS25、AC

Certification : ISO SGS

Place of Origin : China

MOQ : 20pcs

Price : 50 - 500pieces $20-$30

Payment Terms : T/T, L/C, Western Union,

Supply Ability : 50000pcs per month

Delivery Time : 15 days

Packaging Details : Plywood Box

Keyword : heat exchanger plate

Plate Type : Gasketed Plate Heat Exchanger

Plates Material : SUS304 316 316L 310S 904 TAi TAi-Pd Hastelloy C276 D205 B2G Ni200 Ni201 Molybdenum254

Surface Treatment : powder coating, Clean

Veneer Area : customized

Plate Gasket Material : NBR/EPDM/Viton/HT EPDM/HT NBR

Plate Gasket Thickness : 0.5/0.6/0.8mm, 0.5mm, 1mm, 0.5MM/0.6MM, 0.5mm to 0.7mm available

Plate Gasket Type : Clip-on/Glued

Plate Heat Transfer Area : 0.03-3.5m²

Plate Material : 304/316L/SMO254/Titanium/Nickel

Plate Pressure Rating : 1.0/1.6/2.5/3.0/4.0/6.0Mpa

Plate Thickness : 0.5mm/0.6mm/0.7mm/0.8mm/1.0mm

Contact Now

Product Description


Heat Exchanger Plates

Accessen Stainless Steel/Nickel/Hastelloy Plate Customized Heat Exchanger Plate

There are some important considerations to make in selecting the appropriate metal for the heat exchanger plate. The main factors in the selection of heat exchanger plates are the working environment, temperature, turbidity, implicity, and properties of metals. Titanium heat exchanger plate: Titanium heat exchanger plate is used because of its extremely high corrosion resistance, high temperature resistance, and the metal is heavy, but expensive. Hastelloy C276 Heat Exchanger Plate: Hastelloy C276 is a corrosion-resistant nickel-molybdenum-chromium alloy.

Hastelloy C276 plate is chosen as the heat exchanger plate because it has much better qualities than other types of metals. Hastelloy C276 is a corrosion resistant nickel-molybdenum-chromium alloy. It is good for high corrosion resistance, high temperature resistance, and other currosive environments. The Hastelloy C276 plate heat exchanger is used because of the metal qualities it requests.

Brand Model

ACCESSEN

AU3,AU5,AS6,AU8,AU10L1,AU10L2,AU15L1,AU15L2,AU15M,AU20,AU20M

AN5,AN10L1,AN10L2,AN10M,AN15L1,AN15L2,AU25L1,AU25L3

AN20,AN25L1,AN25L2,AN30L1,AN30L2,AN30L3,AN30L4

AN35L1,AN35L2,AN35L3,AN35L4,AN40L1,AN40L2,AN40L3,AN40L4

AN45L1,AN45L2,AN45L3,AN45L4,AS20,AS25,AC190,AC230,AP20,AP25,AP35

Material Specification
Stainless Steel

SUS304 316 316L 310S 904

Titanium and titanium-palladium alloy TAi TAi-Pd
Hastelloy

C276 D205 B2G

Nickel Ni200 Ni201
Molybdenum 254

  • AISI 304 is usually 0.4 or 0.5 mm thickness
  • AISI 316 is always 0.5 and 0.6 mm
  • 254 SMO (high alloy) typically 0.6 mm
  • Titanium plates are always 0.5 and 0.6 mm
  • Some have thicker plates (for high pressure applications)
  • Some PHEs have 0.4 mm (low pressure operation)
  • Hastelloy C-276 (nickel alloy) typically 0.6 mm

Applacations

Products are mainly suitable for ACCESSEN/GEA (Kelvion)/ APV/ Sondex/ Tranter/ Hisaka/ API/ Funke/ Vicarb/ Mueller/ SWEP/ Fischer/ AGC/ Thermalwave/ ITT/ LHE/ DHP, etc.


Plate material Suitable for fluids
Stainless steel (SUS304.316, etc.) Purified water, river water, edible oil, mineral oil
Titanium and titanium palladium (Ti, Ti-Pd) Sea water, salt water, salt compounds
20Cr,18Ni,6Mo(254SMO) Dilute sulfuric acid, dilute salt aqueous solution, inorganic aqueous solution
Nickel (Ni) High temperature, high concentration caustic soda
HASTELLOY alloy (C276, D205, B2G) Concentrated sulfuric acid, hydrochloric acid, phosphoric acid

Q&A:

Question: What specific requirements do you have for the replacement plate in your heat exchanger?

Answer: By understanding your specific requirements, we can tailor the replacement plate to meet your exact needs.

Question: Are there any special materials or coatings you prefer for the replacement plate?

Answer: By offering a range of materials and coatings options, we can customize the replacement plate to suit your preferences.

Question: Do you have any size or design preferences for the replacement plate?

Answer: We can customize the size and design of the replacement plate to fit your heat exchanger perfectly.

Question: Would you like any additional features or modifications incorporated into the replacement plate?

Answer: We can discuss adding any additional features or modifications to enhance the performance of the replacement plate.

Question: How can we assist you further in ensuring that the replacement plate meets your specific requirements and expectations?

Answer: We are committed to providing personalized service and support throughout the replacement process to ensure your complete satisfaction.

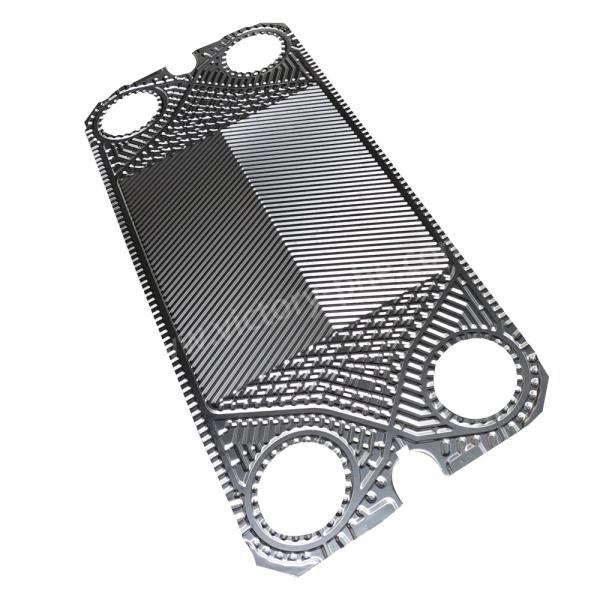

Hastelloy Accessen Heat Exchanger Plate

Hastelloy Accessen Heat Exchanger PlateHastelloy Accessen Heat Exchanger PlateHastelloy Accessen Heat Exchanger PlateHastelloy Accessen Heat Exchanger Plate
